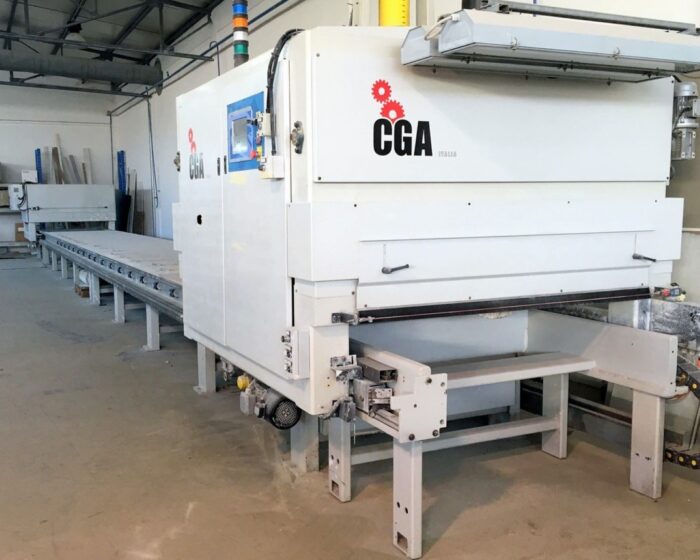

CGA

Code: 4778
Brand: CGA
Model: /
Year: 2007

Product Specifications

CONTROL SYSTEM
• Numerical control PLC
TECHNICAL CHARACTERISTICS
• Conveyor length 15.000 mm
• Useful working width 1.500 mm
• Useful working height min – max 6-160 mm
• Speed of rotation of the rotary heads 50 rpm
• Mainhead movement speed 8 m/min
WORKING AREA
• Nr. 2 Working areas to facilitate loading and unloading operations by doubling the production speed
• Sliding main head on THK high-precision guides
• Nr. 6 Shafts with polishing rollers in cotton felt brushes
• Nr. 4 Finishing rotative brushes with independent motors
• Fast fixing system for pieces
• Quick brush replacement system
• Automatic and timed spraying product handling system to adjust spraying timing
NORM AND OPTIONAL FOR SECURITY
• Copy of original EC Declaration of Conformity
